Parking

The lighting of a car park must bring a strong feeling of security during the night use, and allow an easy identification of the other users, of its vehicle and the locations.

The installation of autonomous solar street lighting masts in a parking lot is quick and easy in terms of implementation (no trench, no wiring, no connection to the network): a ground anchor is enough!

The icing on the cake: the solar lamp post is 100% autonomous, it generates no electricity bill.

Average illuminance level:

  • PMR Zone (Person with Reduced Mobility)> 20 lux average.
  • Except the PMR zone ~ 10 lux medium.

RECOMMENDED OPERATING MODE:

  • The standard: ignition at full power the first three hours of the night and then switch to standby mode at 10% and presence detection the rest of the night. With NOVMOOV option.
  • Most energy-efficient: 10% stand-by power up and presence detection all night long. NOVMOOV option.
  • The most energy-intensive: full power the first three or four hours of the night and one or two hours in the morning associated with a sleep mode. Presence detection possible between the two periods of permanent lighting.

NOVMOOV system: a wireless communicating solution that allows one or more groups of street lights to be switched on simultaneously in full power

LIGHTING POWER:

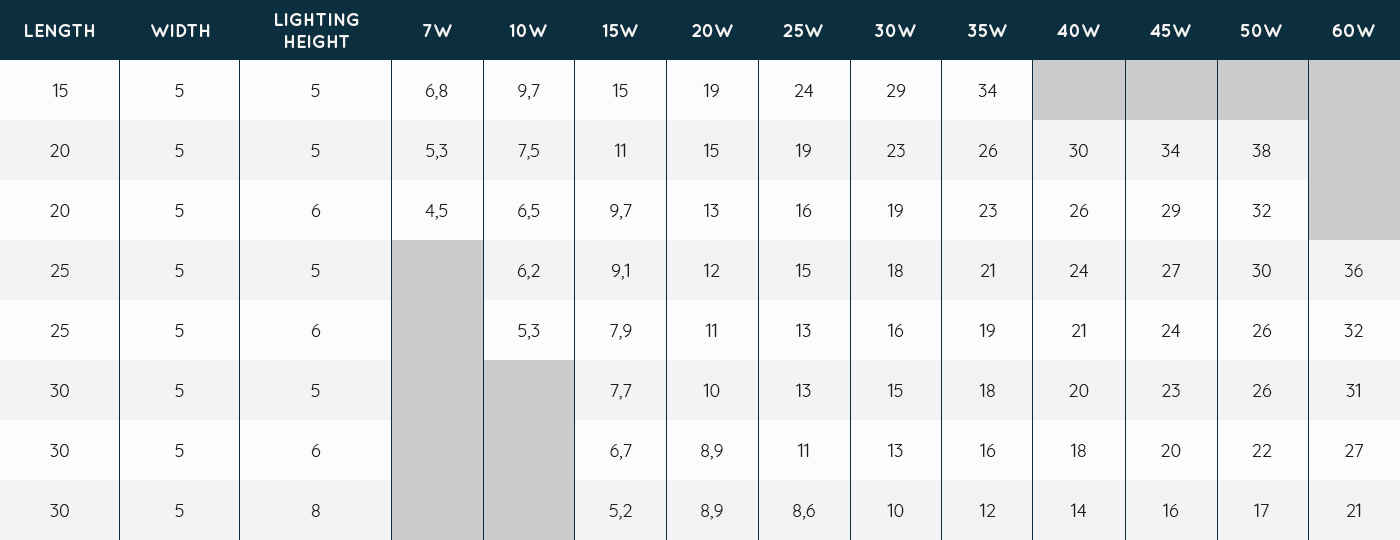

The table below shows the required lighting power according to the objective of the level of illumination to be attained and according to the surface indicated.

It will remain to specify the operating time per night to validate the power of the solar panel and the capacity of the battery.

Products related to this type of project

Combi Top 1

  • Solar panel power: minimum 60 Wp (360° adjustable)
  • Light height: 3,5 to 6 m
  • Power consumption: 5 to 20 W
  • Luminous flux leaving: 700 to 3 600 lumens
View the product

Combi Top 2

  • Solar panel power: 150 Wp (360° adjustable)
  • Light height: 4 to 6 m
  • Power consumption: 10 to 40W
  • Luminous flux leaving: 1 400 to 7 200 lumens
View the product

Combi Top 3

  • Solar panel power: 175 Wp (360° adjustable)
  • Light height: 4 to 8 m
  • Power consumption: 20 to 40 W
  • Luminous flux leaving: 2 800 to 7 200 lumens
View the product

Combi Top 5/5+

  • Solar panel power: 330 Wp (360° adjustable)
  • Light height: 5 to 8 m
  • Power consumption: 30 to 60 W
  • Luminous flux leaving: 4 200 to 10 800 lumens
View the product

Combi Top 6

  • Solar panel power: 2x330 Wp (660 Wp)
  • Light height: 5 to 8 m
  • Power consumption: 30 to 120 W
  • Luminous flux leaving: 4 200 to 21 600 lumens
View the product

AKKOR 1.4

  • Solar panel power: 100 Wc
  • Light height: 4 m
  • Power consumption: 10 to 40 W
  • Luminous flux leaving: 1 100 to 5 600 lumens
View the product

AKKOR 2.6

  • Solar panel power: 200 Wc
  • Light height: 6 m
  • Power consumption: < 25 W
  • Luminous flux leaving: 1 500 to 3 000 lumens
View the product
