Technical characteristics
Solar panel power | 175 Wp (360° adjustable) |
---|---|
Battery technology | Endurance +, Lithium Iron phosphate |
Location | In a box in aluminum foundry, behind the solar panel |
Battery capacity | 532 to 1 064 Wh |
Operating temperature | -20 °C to +65 °C |
Light height | 4 to 8 m |
Power consumption | 20 to 40 W |
Luminous flux leaving | 2 800 to 7 200 lumens |
Light efficiency | 140 lm/W (2200 K) - 160 lm/W (2700 K) - 165 lm/W (3 000 K) - 180 lm/W (4 000 K) |
Color temperature | 2 200 K / 2 700 K / 3 000 K / 4 000 K |
Mast | Cylindroconic galvanized steel powder coated, without door, calculated for all wind zones according to EN40 standard |
Service life | Luminaire : 100 000 h at 80 % of initial flux Solar panel: 25 years at 80 % of initial production Electronic card : 20 years Battery : > 20 years (France, DROM) / > 10 years (Africa, Middle East) |
Warranty | France and DROM : 10 years Africa and the Middle East : 5 years Other : consult us |

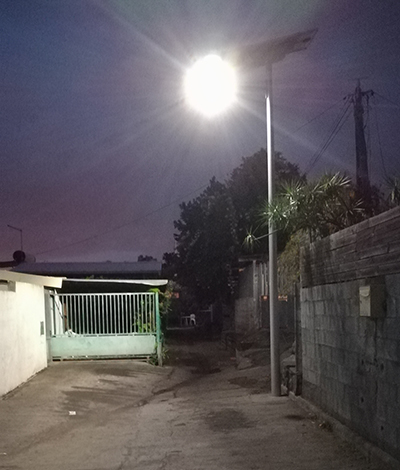

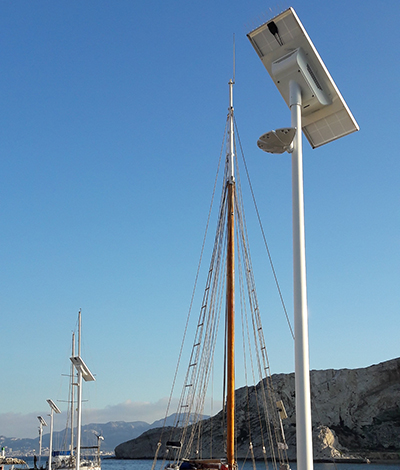

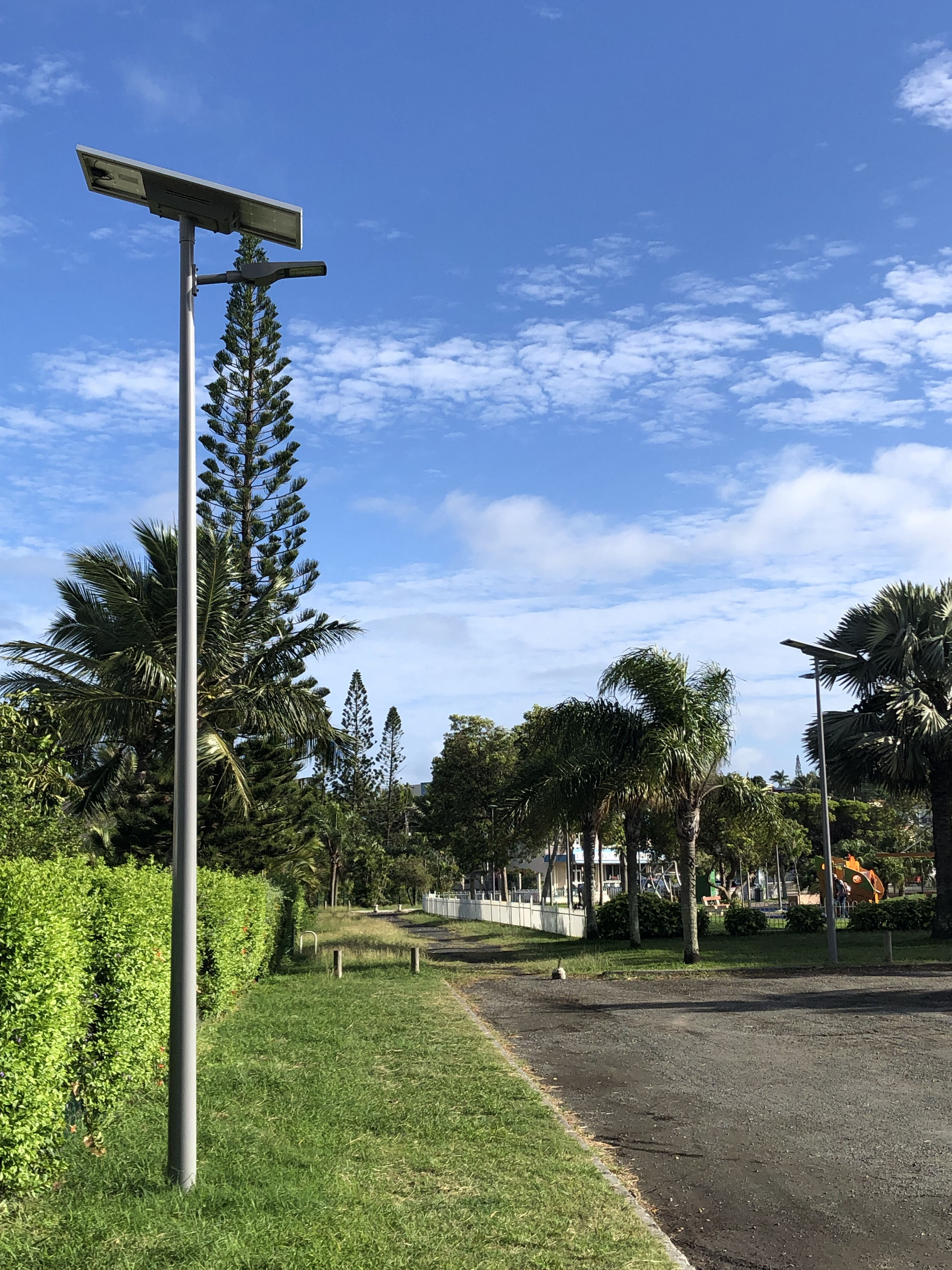

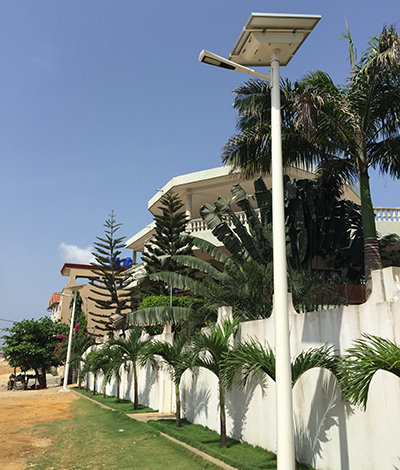

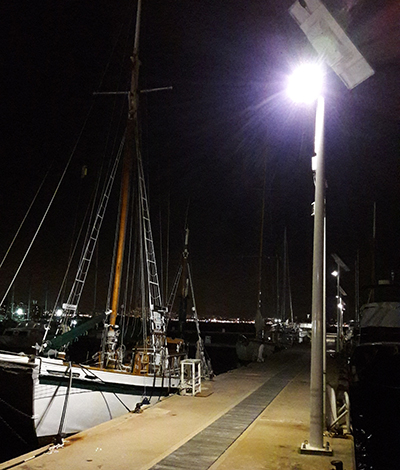

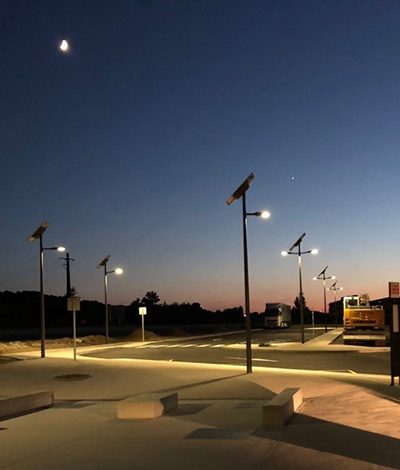

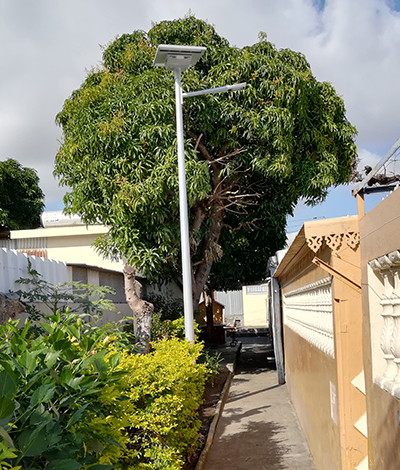

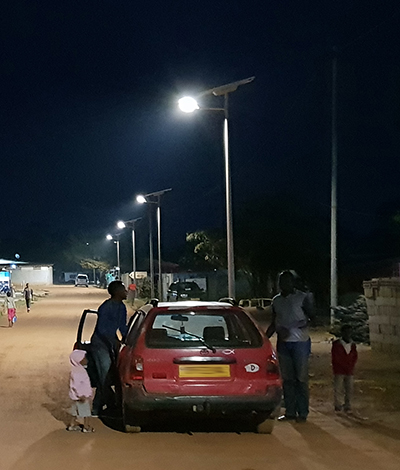

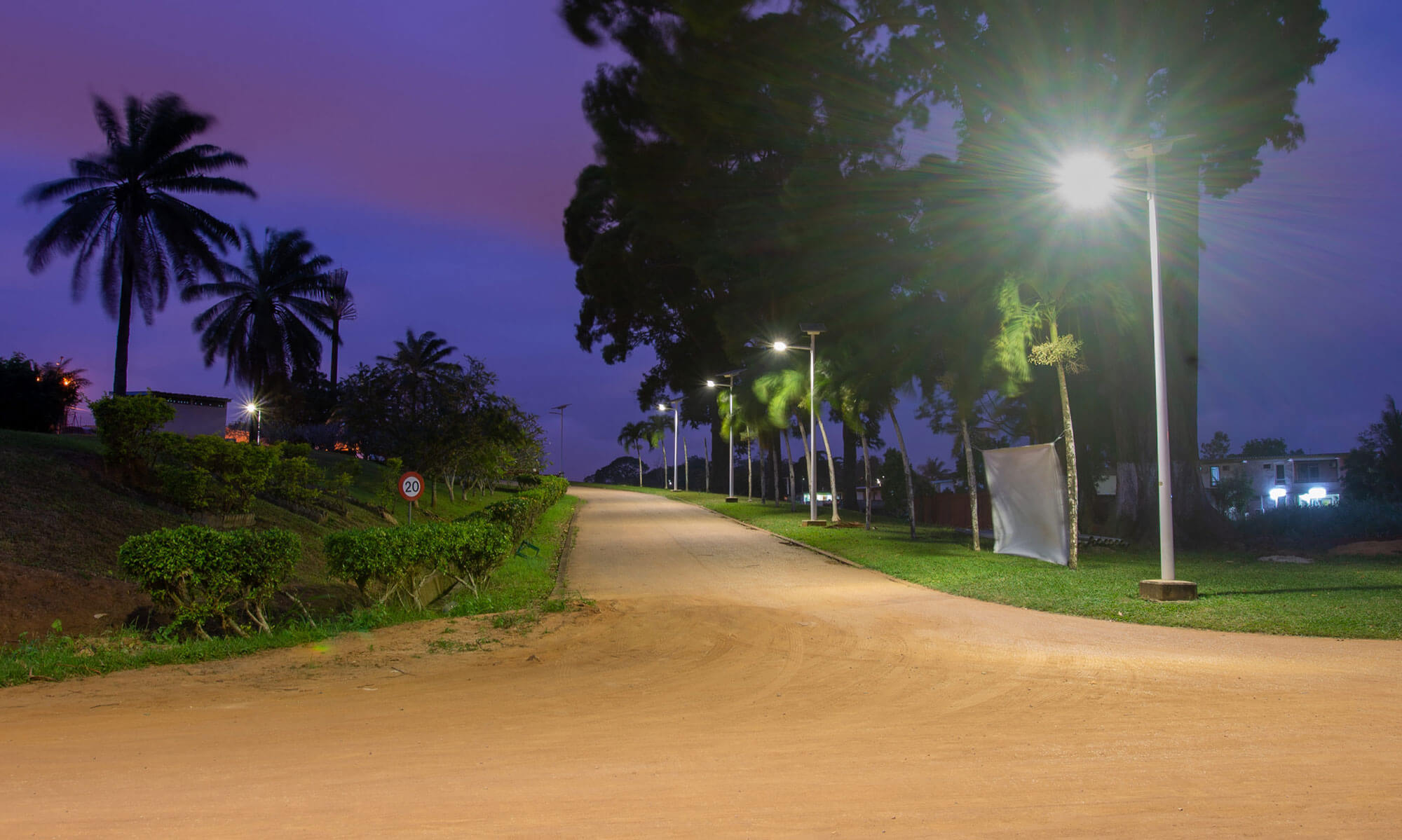

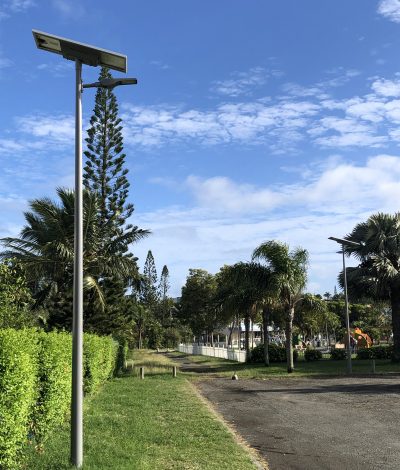

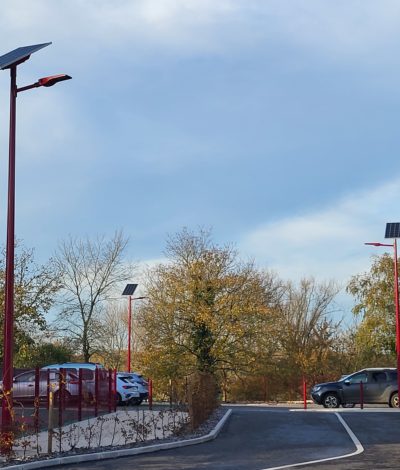

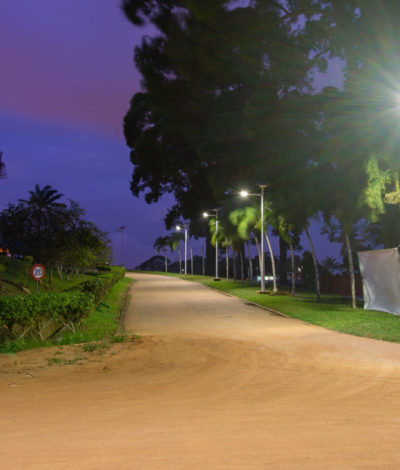

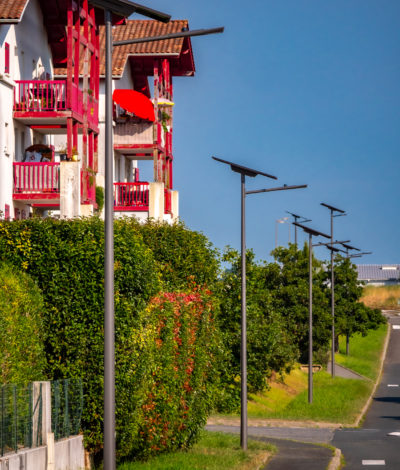

Application | Parking, residential, secondary road, pedestrian path, bus shelter, bike path, secondary road... |
